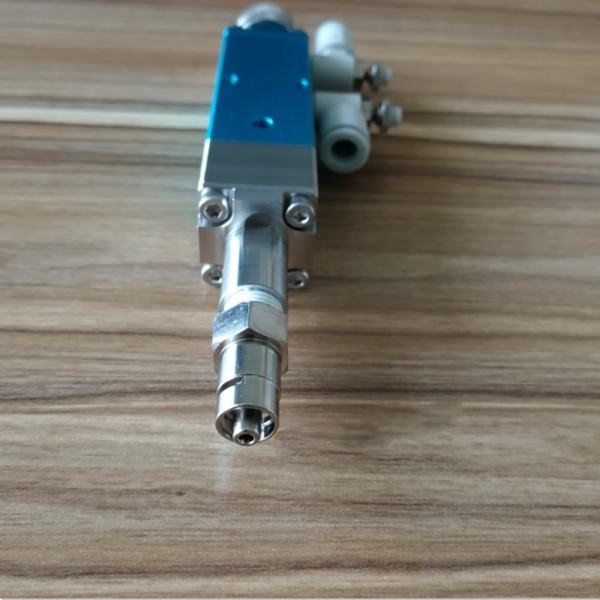

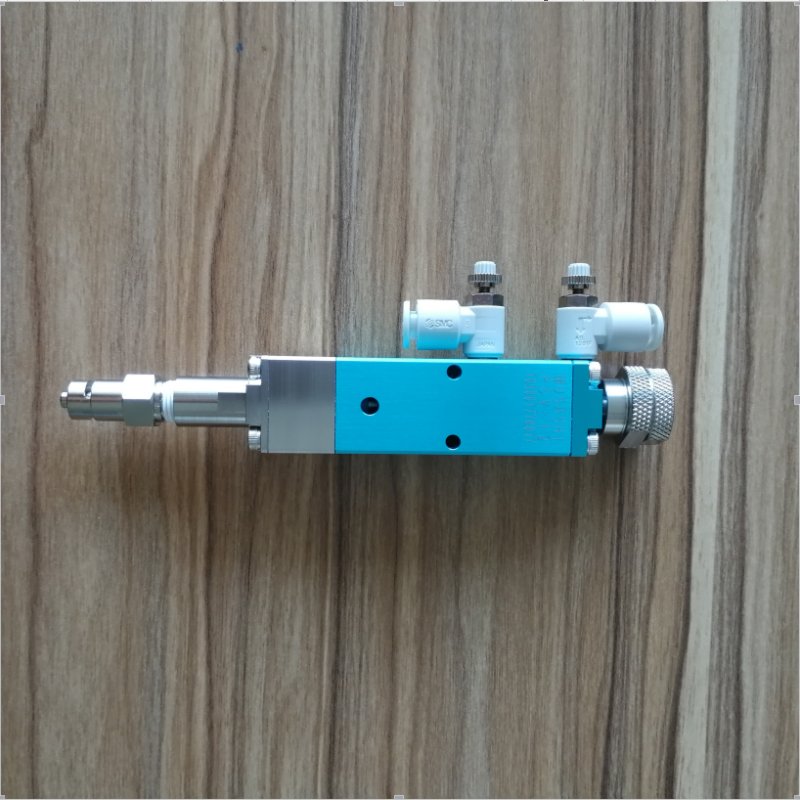

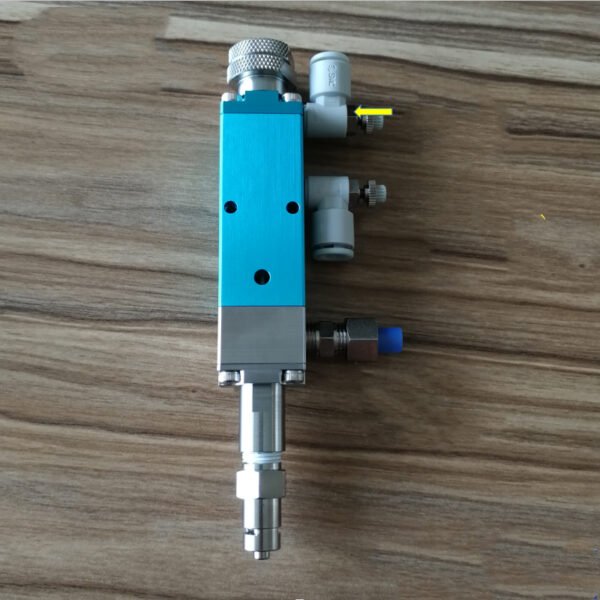

Piston control valve PCV-12-2P Musashi Engineering Pneumatic

The Musashi Piston Control Valve enables stable and continuous dispensing, made possible by its integrated suck-back mechanism.

Key Specifications

• Part Number: PCV-12-2P
• Drive system: Pneumatic driven system
• Minimum dose: 18uL
• Viscosity range: Up to 100Pa’s
• Operating air pressure: 0.35 to 0.6MPa
• Maximum fluid charge pressure: 0.5MPa
• Maximum number of cycles: 580 times/min
• Fluid dispensing port: Luer lock type
• Operating temperature range: 5 to 60
• Weight: 220g
• Liquid material supply outlet: Rc1/8

1. The suck-back mechanism prevents dripping and liquid buildup.
2. The diamond plunger structure prevents liquid from entering sliding components.
3. Compact, square-shaped, and lightweight, it is ideal for self-supporting installations.
