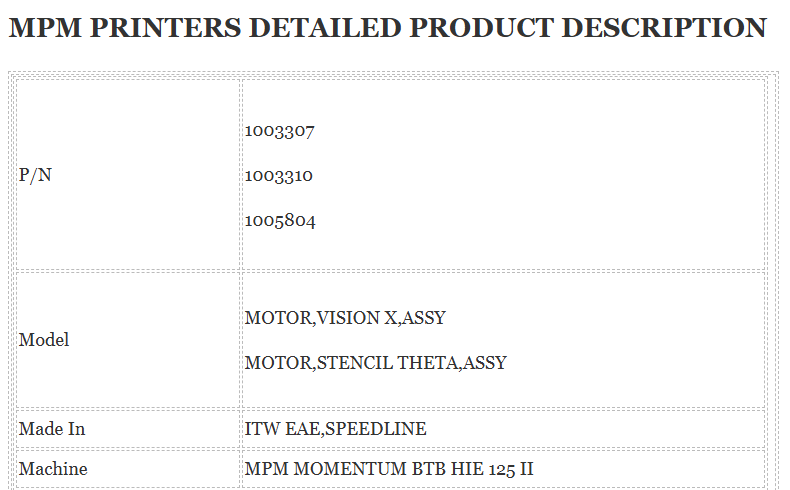

MPM PRINTERS DETAILED PRODUCT DESCRIPTION

THE MOMENTUM II 100 STENCIL PRINTER IS A HARD-WORKING

Mpm Printer are engineered with proven technology that was built on our successful legacy MPM stencil printer machines.
From Mpm Printer head technology to vision system development, today’s leading Momentum series of stencil printers are ready
to meet the most exacting manufacturing challenges.

Momentum® II BTB features a smaller footprint than the standard Momentum platform. Back-to-Back configuration allows dual lane processing for higher throughput without increasing line length or capital investment. Dual lane provides the flexibility to print multiple products in a single SMT line, such as top and bottom side, same side, or mother/ daughter boards making the BTB the most flexible model in the proven Momentum platform.

The Momentum II Elite stencil printer is the top-performer of the Momentum series, boasting the highest throughput and shortest cycle times of all. Its vision system is driven by servos for speed, and it’s configured with a highly-efficient triple track rail system that saves cycle time by buffering PCBs inside the machine. A new board is indexed into the machine and positioned next to the center nest, readying to print, while other boards are being loaded and offloaded.

The Momentum II is designed for high throughput and accuracy. MPM’s rigid frame is welded for low vibrations and major assemblies are driven by precision ball screws.  This allows for higher repeatability and greater reliability over time.

Momentum II has an advanced print head featuring a high precision load cell with closed loop pressure control for precise and consistent squeegee force. Tighter performance tolerances mean consistent repeatability with higher yield.
