114609 Kurtz Ersa Selective Soldering Nozzles Origin New

Overview of Kurtz Ersa Selective Soldering Nozzles (114609)

Kurtz Ersa is a well-known name in the world of electronics manufacturing, providing high-quality soldering and thermal processing solutions. Among their product line are selective soldering nozzles, which are crucial components in the selective soldering process. These nozzles are designed for use with automated soldering equipment to ensure precision and consistency, especially in high-volume manufacturing environments where accuracy is essential. Selective soldering nozzles are specifically crafted to control the application of molten solder, allowing for targeted soldering on printed circuit boards without affecting neighboring components.

Selective soldering is often employed in applications where through-hole components need to be soldered onto PCBs that also include surface-mount technology . The precision provided by selective soldering nozzles reduces the risk of damaging other components, ensuring high-quality, reliable solder joints. Kurtz Ersa’s range of nozzles offers various sizes and configurations, providing solutions for diverse manufacturing needs.

Here’s an in-depth look at some specific nozzle models from Kurtz Ersa, their design features, and their applications.

Detailed Analysis of Specific Nozzle Models

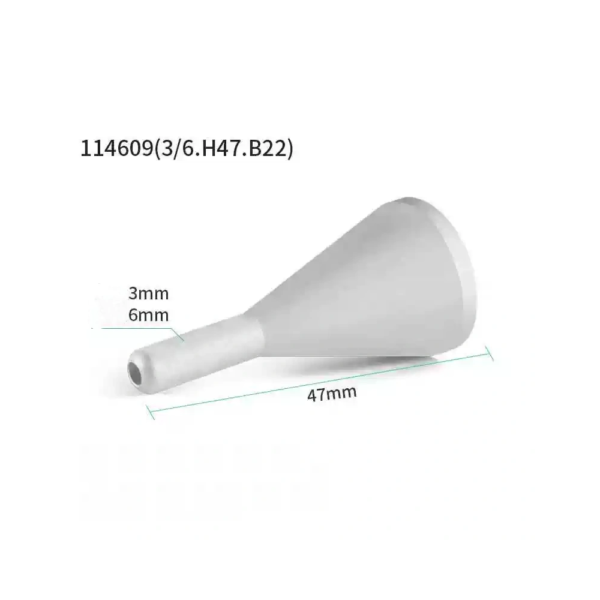

1. Kurtz Ersa Model 114609 (3/6.H47 B22)

This model has a nozzle opening with dimensions of 3/6, which refers to its width and height. The 3mm width allows for precise solder application, making it suitable for components that require fine control. The B22 denotes the specific connection type and compatibility with certain Kurtz Ersa machines. The H47 indicates the nozzle’s height, which is essential for accessing areas where clearance is limited.

Applications:

• Ideal for soldering fine-pitch components.
• Commonly used in applications where accuracy is crucial, such as in the medical device and telecommunications industries.

2. Kurtz Ersa 3/4.5.H47 B22

This nozzle offers a slightly narrower profile, making it useful for tighter spaces. The 4.5mm height allows it to access areas with slightly more clearance compared to the previous model, giving it flexibility in terms of application.

Applications:

• Often utilized in automotive electronics, where components are densely packed.
• Suitable for delicate electronics where precision is essential.

3. Kurtz Ersa 14/16.H47 B22

With a larger 14/16 opening, this nozzle is built for applications requiring more solder flow. Its design makes it ideal for larger components, where a wider solder coverage is needed to ensure a strong and reliable joint.

Applications:

• Frequently used in power electronics and applications requiring robust connections.
• Applicable in manufacturing environments where larger, through-hole components need secure soldering.

4. Kurtz Ersa Model 114611 (4/8.H47 B22)

This nozzle provides a 4mm width and an 8mm height, making it versatile for general use. It’s designed for situations that require a balance between precision and solder flow, which makes it a go-to nozzle for a wide range of applications.

Applications:

• Commonly used in consumer electronics assembly.
• Suitable for mixed-technology boards where space is limited.

5. Kurtz Ersa Model 118615 (8/12.H47 B22)

The 8/12 dimensions of this nozzle provide a wider profile, making it effective for applications that require more substantial solder application. The 12mm height allows it to navigate around taller components without risk of contact.

Applications:

• Suitable for high-current connectors in power supply units.
• Effective in industrial control boards that demand reliable soldering.

6. Kurtz Ersa Model 119274 (10/14.H47 B22)

With a larger 10mm width, this nozzle offers even more substantial solder flow, suitable for components with larger pads or where enhanced solder coverage is necessary. Its design caters to applications with components that demand secure and robust joints.

Applications:

• Ideal for soldering large capacitors or inductors.
• Commonly seen in renewable energy technology and heavy-duty machinery electronics.

7. Kurtz Ersa Model 208094 (12/16.H47 B22)

This model has one of the largest profiles in the range, with a 12/16 opening, making it ideal for large components. The 16mm height is particularly useful in assemblies where significant component variation exists, allowing the nozzle to clear taller components.

Applications:

• Frequently used in power distribution systems.
• Applicable in PCB assemblies for electric vehicles and other applications that require substantial solder joints.

8. Kurtz Ersa Model 114613 (6/10.H47 B22)

This nozzle provides a balanced profile, suitable for a range of general-purpose applications. With a 6mm width and 10mm height, it’s versatile for medium to large components, providing a solid mix of precision and solder volume.

Applications:

• Commonly employed in medical electronics.
• Suitable for power supplies and industrial control boards.

9. Kurtz Ersa Model 471014

The specifics of model 471014 are typically associated with specialized applications, often requiring high reliability. This model is likely tailored for unique manufacturing processes where other nozzles may not suffice.

Applications:

• Used in aerospace applications where high reliability is essential.
• Applicable in military-grade electronics requiring robust and durable solder joints.

Conclusion

Kurtz Ersa selective soldering nozzles are designed to meet a wide variety of industrial needs. The different sizes and configurations cater to various manufacturing requirements, from fine-pitch precision applications to robust, high-solder-volume tasks. With these specialized nozzles, manufacturers can ensure that solder is applied accurately and efficiently, improving the quality and reliability of solder joints. Each model has its own advantages and is suited to particular tasks within diverse industries, allowing manufacturers to achieve optimal results.

By understanding the specific attributes and applications of each model, production teams can make informed choices, enhancing productivity and ensuring consistency in their selective soldering processes.
