Diaphragm Liquid Pump Knf NFB 60 KPDCB-B
Get A Quote!
Diaphragm Liquid Pump KNF NFB 60 KPDCB-B — Compact, dual-head electric pump with 250–550ml/min flow rate and 10–30m head. Ideal for medical, printing, and automation. Self-priming, durable, and efficient.
| Diaphragm Liquid Pump (Water Pump) – Model: NFB 60 KPDCB-B | |
|---|---|
| Motor | Brushless motor, 2 wires (positive, negative) |
| Apply fluid | Water |
| Voltage | 12V / 24V |
| No-loaded Current | 0.4A / 0.3A |
| Free Water Flow | One head: 250 ml/min Other head: 550 ml/min |
| Safe Working Pressure Range | 0 – 1.8 Bar |
| Max. Pressure | 2.5 Bar |
| Pressure Head | 10 m |
| Suction Height | < 6 m |
| Permissible Ambient Temperature | +5ºC to +40ºC |
| Permissible Liquid Temperature | +5ºC to +50ºC |
| Note | Do not connect pump outlets in series when pumping liquid |
| Life @ 0 Bar | Max 10,000 hours |
| Tube Suggestion | 6 × 4 mm |
| Weight | 0.35 kg |

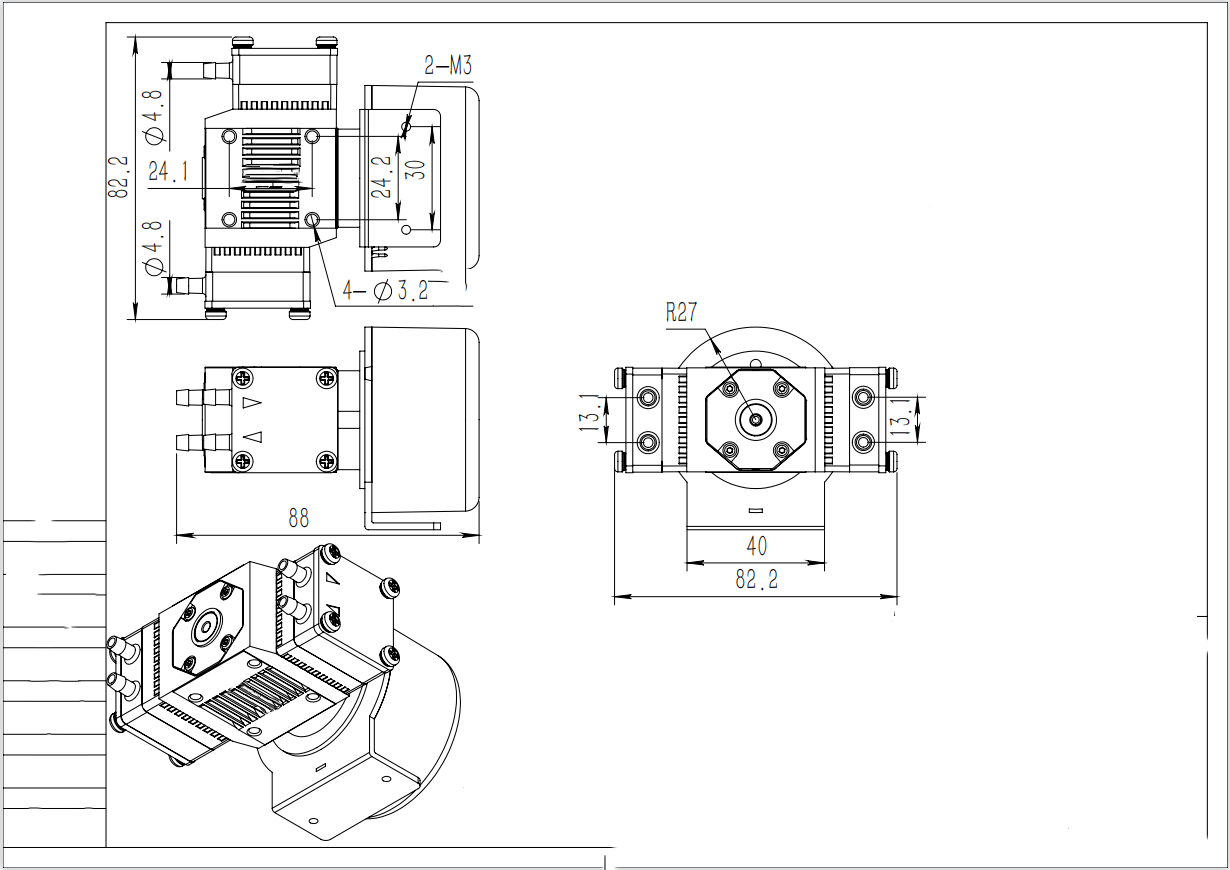

| Size | 96 × 59 × 98.59 mm |
| Material | Pump head: PA66 Diaphragm: PTFE Valve: FFKM |
KNF NFB 60 KPDCB-B Diaphragm Liquid Pump | Dual-Head Self-Priming Pump for Medical, Printing & Automation Applications
The KNF NFB 60 KPDCB-B is a compact, high-performance electric diaphragm pump designed for precision liquid transfer in demanding environments. Also available in models PL6871-NFB 30 and PL5402-NFB 30, this positive-displacement pump features a dual-head configuration, offering maximum flow rates of 250ml/min and 550ml/min, with a maximum head of 10–30 meters.
Built from iron and plastic composite materials, the NFB series ensures long-lasting durability and excellent chemical resistance. With its self-priming capability, reciprocating design, and electric motor drive, it is ideal for continuous and accurate pumping in medical devices, industrial printers, and automated systems.
Diaphragm Liquid Pump Key Features:
- Model Numbers: KNF NFB 60 KPDCB-B, PL6871-NFB 30, PL5402-NFB 30
- Flow Rate: 250ml/min & 550ml/min
- Max. Head: 10–30 meters
- Pump Head: Dual (2 heads)
- Structure: Diaphragm pump
- Driving Type: Electric motor
- Material: Iron + Plastic
- Application: Water transfer, printing, medical, and automation industries
- Performance: Self-priming, compact, energy-efficient
- Pump Theory: Positive-displacement, reciprocating pump
- Media: Liquid
- Start-Up: Electric
- Packaging: Foam + Carton
- Origin: China
- Brand: NFB
Whether you require reliable liquid delivery for medical systems or consistent ink transfer in industrial printing, the KNF NFB series delivers precision, efficiency, and long-term stability.
| Weight | 0.88 kg |
|---|---|
| Dimensions | 43 × 21 × 27 cm |
