Camalot Needle 16026 ITW EAE Origin New Dispensers Speedline

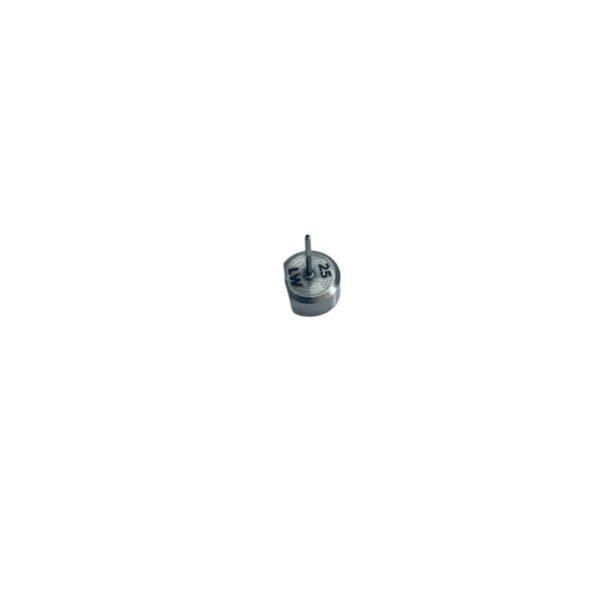

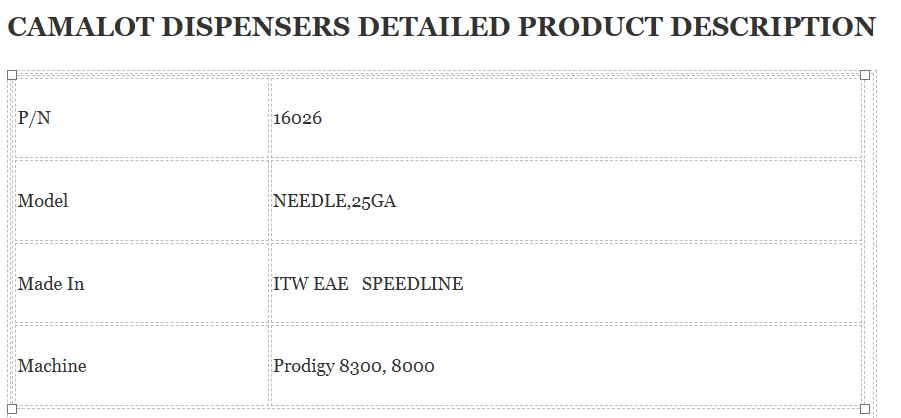

Camalot Needle 16026

SmartStream® is a unique, patented non-contact dispense pump that uses positive displacement to create a controlled
stream of material. SmartStream dispenses a column of material with each cycle instead of a single sphere, and is well-suited
for underfill applications. Since its piston does not contact seat or nozzle, wear is minimal, and the pump is designed for long
life and high precision dispensing. Controlling the positive-displacement piston with a closed-loop servo drive achieves a high
degree of accuracy and repeatability for consistent process results. Programmable for narrow stream widths for access into densely
packed areas.

Advanced Tilt & Rotate

Patented technology that enables reduced wet-out areas, improved capillary flow for underfill and access for dispensing on side walls or around tall components.

PCB designs are ever more challenging for dispensing with increased component densities, reduced materials keep out zones, and a broad mix of component heights.  The Prodigy’s advanced Tilt and Rotate option solves all these challenges and more with its patented design and operation.
