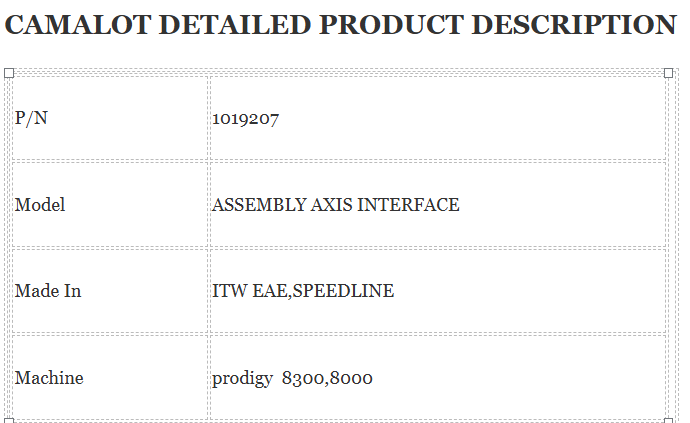

CAMALOT DETAILED PRODUCT DESCRIPTION

The Prodigy dispensing machine uses cutting-edge technology to achieve faster processing,
greater accuracy, and improved yields.

Camalot SmartStream® is a unique, patented non-contact dispense pump that uses positive displacement to create a controlled
stream of material. SmartStream dispenses a column of material with each cycle instead of a single sphere, and is well-suited
for underfill applications. Since its piston does not contact seat or nozzle, wear is minimal, and the pump is designed for long
life and high precision dispensing. Controlling the positive-displacement piston with a closed-loop servo drive achieves a high
degree of accuracy and repeatability for consistent process results. Programmable for narrow stream widths for access into densely
packed areas.

The Camalot machine also has an innovative board staging option that can double or even triple the dispense area in the X direction, allowing for processing of products up to 900mm in size.

Both contact and non-contact heating options, including heated lift chucks, ensure that dispense materials are maintained at a controlled temperature for consistent, repeatable material flow rates for underfill and encapsulation.

The Camalot Prodigy’s features can be easily upgraded in the field, due to its “plug and play” compatibility and simplicity. This includes upgrades to heat, pumps, weight scale, 2nd Z-axis, and even the conveyor system.
