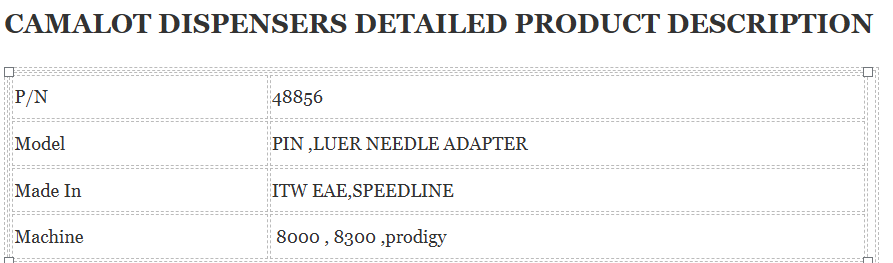

CAMALOT DISPENSERS DETAILED PRODUCT DESCRIPTION

Camalot Dispensers feature the 48856 Adapter 680 Pump from ITW EAE, an important component that enhances the versatility and performance of adhesive dispensing systems.

Overview of the 48856 Adapter 680 Pump

1. Functionality

The 48856 Adapter 680 Pump is designed to facilitate the efficient transfer and dispensing of various adhesive materials. It allows for precise control over the flow rate, making it suitable for a wide range of applications in manufacturing.

2. Precision and Control

This pump adapter ensures consistent and accurate dispensing, which is critical for applications that require high precision, such as in electronics assembly and component placement. Its design minimizes variations in material flow, ensuring uniform application.

3. Compatibility

The 48856 Adapter is specifically engineered for compatibility with the Camalot Dispenser system, allowing for easy installation and integration into existing workflows. This compatibility enhances the overall functionality of the dispensing setup.

4. Durability

Constructed from high-quality materials, the 48856 Adapter is built to withstand the demands of continuous operation. Its robust design helps reduce maintenance needs and extends the lifespan of the dispensing system.

Conclusion

The 48856 Adapter 680 Pump is a vital component of the Origin New Camalot Dispensers, enabling precise and efficient adhesive dispensing. Its performance contributes to high-quality results in various manufacturing processes, making it an essential tool for modern production environments.

635 and 680SD Pumps

offers two (2) types of Auger pump, both controlled with a precise servo drive system. For highly abrasive
materials both 635SD and 680SD pump systems offer more wear resistant carbide auger screws. The 680SD pumps
deliver high flow rates and also incorporate a patented positive shutoff that eliminates dripping of lower viscosity materials.
The auger design (pitch, etc.) is typically tailored to meet the requirements of the individual customer’s specific material
that will be dispensed (i.e., application-based).

Patented technology that enables reduced wet-out areas, improved capillary flow for underfill and access for dispensing on side walls or around tall components.

PCB designs are ever more challenging for dispensing with increased component densities, reduced materials keep out zones, and a broad mix of component heights.  The Camalot Prodigy’s advanced Tilt and Rotate option solves all these challenges and more with its patented design and operation.

NuJet Jetting Pump

NuJet eliminates use of a needle and incorporates a contact jetting technique to displace the dispense material. Controlling the piston with a pneumatic actuator and closed-loop software achieves a high degree of accuracy and repeatability for consistent process results.

Features

• Speeds up to 300 Hz
• Auto-tune for closed-loop calibration
• Setup time reduced by 20%
• Dot sizes < 300 microns
• Extended maintenance frequency
