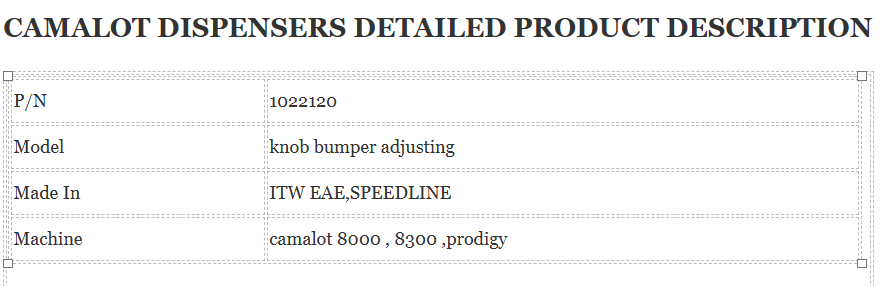

CAMALOT DISPENSERS DETAILED PRODUCT DESCRIPTION

Dynamic Dual Head

The proprietary design of Dynamic Dual Head (DDH) provides the only fast and fully accurate solution for dual head simultaneous dispensing. The DDH option uses a unique and patented mini XY drive system on a second Z-Axis to correct “real-time” and allow synchronous dispensing of both pumps regardless of part to part rotation. This technique guarantees increased productivity whilst maintaining yields through unsurpassed accuracy.

Key Features

• Independent, real time adjustment for both dispense pumps
• Dispense productivity increased by up to 100%
• No yield loss due to second head inaccuracy
• Compatible with all dispense pumps
• Automatic setup and calibration

NanoShot Piezo Jetting Technology

Offering high speed – Up to 600 Hz, and ultra-fine resolution, with dot sizes 300 microns, this patent pending pump features state-of-the-art motion control technology, simple maintenance, quick changeover, and a low cost of ownership.

SmartStream® Pump Technology

• SmartStream is a unique patented non-contact dispense method designed and manufactured by Camalot. A controlled stream of material is dispensed using positive displacement with a piston, which does not contact seat or nozzle. SmartStream dispenses a column of material with each cycle instead of a single sphere.
