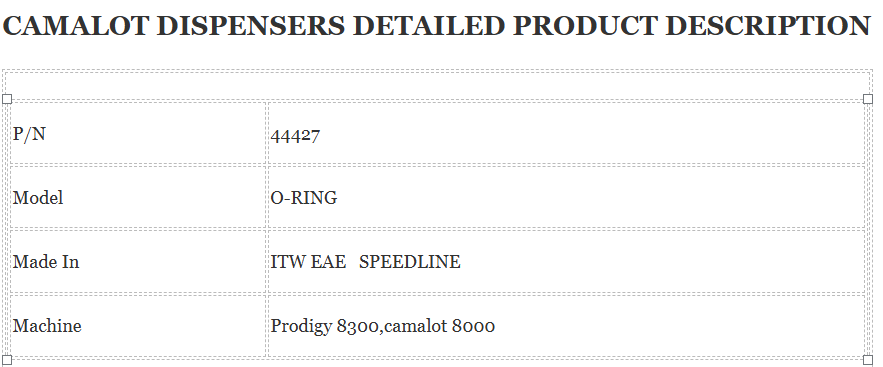

CAMALOT DISPENSERS DETAILED PRODUCT DESCRIPTION

635 and 680SD Pumps

offers two (2) types of Auger pump, both controlled with a precise servo drive system. For highly abrasive
materials both 635SD and 680SD pump systems offer more wear resistant carbide auger screws. The 680SD pumps
deliver high flow rates and also incorporate a patented positive shutoff that eliminates dripping of lower viscosity materials.
The auger design (pitch, etc.) is typically tailored to meet the requirements of the individual customer’s specific material
that will be dispensed (i.e., application-based).

SmartStream

SmartStream® is a unique, patented non-contact dispense pump that uses positive displacement to create a controlled
stream of material. SmartStream dispenses a column of material with each cycle instead of a single sphere, and is well-suited
for underfill applications. Since its piston does not contact seat or nozzle, wear is minimal, and the pump is designed for long
life and high precision dispensing. Controlling the positive-displacement piston with a closed-loop servo drive achieves a high
degree of accuracy and repeatability for consistent process results. Programmable for narrow stream widths for access into densely
packed areas.
